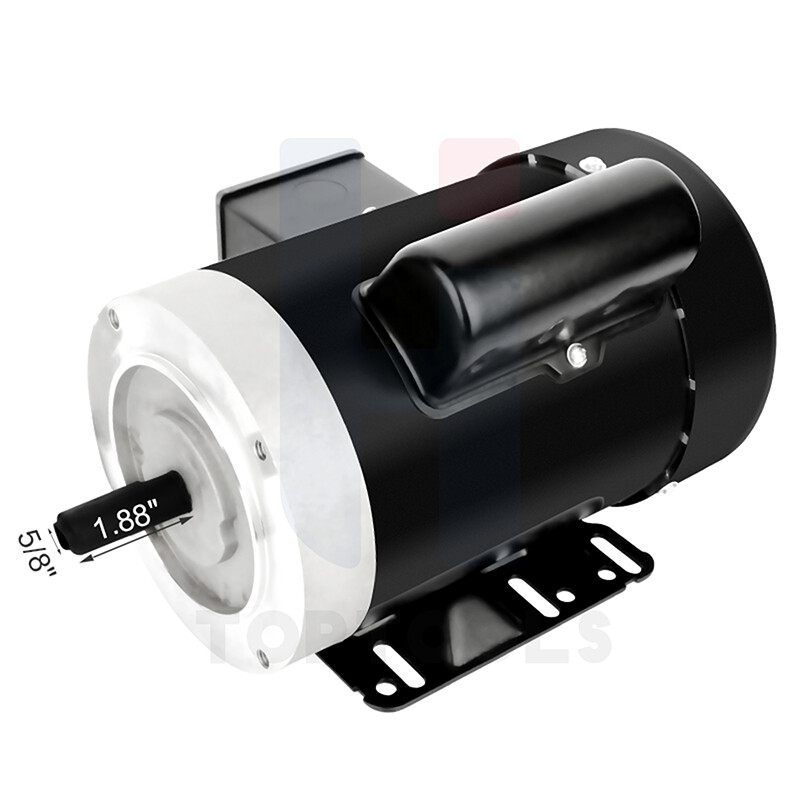

General Purpose Electric Motor Single Phase 3/4 HP 56C Frame 1725 RPM 60

WELCOME TO OUR STORE



Features

Base RPM : Rotational Speed refers to the motor in rated frequency and rated voltage (or even rated load), the actual speed of the rotor rotation

CW(Clockwise) : Represents clockwise rotation

CCW (Counter-Clockwise) : Represents a counter clockwise rotation

TEFC（Totally Enclosed Fan Cooled) : Prevents free exchange of air between the frame interior and exterior, but does not make the frame completely airtight. A fan is mounted on the shaft and pushes air onto the frame during operation to aid the cooling process

Air Compressor Electric Motor Single Phase 3/4 HP 56C Frame 1725 RPM 60 HZ TEFC

WELCOME TO OUR STORE



Features

Base RPM : Rotational Speed refers to the motor in rated frequency and rated voltage (or even rated load), the actual speed of the rotor rotation

CW(Clockwise) : Represents clockwise rotation

CCW (Counter-Clockwise) : Represents a counter clockwise rotation

TEFC（Totally Enclosed Fan Cooled) : Prevents free exchange of air between the frame interior and exterior, but does not make the frame completely airtight. A fan is mounted on the shaft and pushes air onto the frame during operation to aid the cooling process

Insulation Class F : Including a synthetic resin paint modified with silicone organic compounds for inorganic substances such as mica, asbestos and glass filament.The maximum permissible operating temperature is 155 ° C

Pole : Refers to the number of magnetic poles in the excitation winding of the motor.Level 2 means that each phase of the motor contains 2 magnetic poles (one N-pole and another S-pole)



Specification

• Frequency Rating：60 Hz
• Reversible/Non-Reversible：Reversible
• Nominal Rated Input Voltage：115/230 V
• Rated Load (HP)：3/4
• Special Motor Construction：Spindle Motor
• Shaft Diameter：５/8 in
• Enclosure Type：TEFC (Totally Enclosed Fan Cooled)
• Phase：Single Phase
• Insulation Class：B (Max 266°F)
• Mounting Type：Base-Mounted
• Pole ：4
• Amps： 11.0A / 5.5A
• Motor Type：Induction/Asynchronous
• Base RPM：1725RPM
• IP Rating：IP23
• Shaft Length：1.88in
• Protector：Yes
• Housing Material：Rolled steel shell
• Model：  Air Compressor
• IEC Frame Size：56C
• Gross Weight：35.71lb
• Net Weight :29.98 lb
• Package Size：14.96*10.63*10.63 in​



Package List

1 x 3/4HP Air Compressor Electric Motor
1 x Manual

Maintenance Measures

• Clean the fuselage frequently and keep the surroundings clean
• When not in use for a long time, it is necessary to apply oil or anti-rust oil storage management on the body
• Often check the power control switch, power line is abnormal
• Check the oil level and add lubricant to the motor regularly
• Measure the voltage and current of the motor regularly



Item SpecificsBrand HIMPN 108072-hiRated Load (HP) 3/4Nominal Rated Input Voltage 115 V/230 VPhase Single PhaseSpecial Motor Construction Spindle MotorAmps 11.0 A /5.5 AShaft Diameter 5/8 inBase RPM 1725 RPMModel Air CompressorIEC Frame Size 56CFrequency Rating 60 HzReversible/Non-Reversible ReversibleShaft length 1.875 inEnclosure Type TEFC (Totally Enclosed Fan Cooled)Motor Type Induction/AsynchronousMounting Type Base-MountedProtector YesIP Rating IP55Insulation Class B (Max 266°F)Housing Material Rolled steel shellPackage Size 14.96*10.63*10.63 inGross Weight 35.71 lbNet Weight 29.98 lb
